Labels

Overview

  • Labels
    The creation of various different types of labels is supported to allow for easier workflow processes and traceability.

    Any process that requests information that is held in a barcode will accept a scan in lieu of performing the manual entry of the information.

    Ex: Picking



    Disclaimer:
    When selecting a GS128 Barcode option for label printing, note components of the barcode will only be included if the data is applicable and available.

    For example:(a) the weight is only included for catch-weight items if a weight has been collected
    (b) the standard weight will display for set weight items
    (c) the gross weight will display for non-set weight and non-catch weight items
    (d) an expiration or use by date is only included when that date has been entered for that inventory unit
    (e) lot number is only included when a lot number exists for that inventory unit. Etc.

    Please test samples before committing to a format in a production cycle to avoid overflowing the label with a barcode that is too large.

    Supported Labels Include:

    Case Labels: Labels placed on a case of items in inventory.

    1 label per case, which can include 1 UPC barcode and 1 GTIN barcode that includes all of the case's information.  UPC/GTIN codes must be associated with the item in order to print barcodes and a weight if applicable.  If no GTIN is associated with the item, an Item Number Barcode will print instead.  If there is a lot specified and no GTIN Code, then a Lot # barcode will print along with the Item Number barcode.


    Supported Label Sizing/Format:     Case label format can either be assigned per item class and/or assigned per item.  Items must either be assigned an item class that has been assigned a case label format, or assigned an override case label format directly within the item master in order to generate and print case labels.

    4x2 Labels



    4x4 Labels




    Note:     Case labels print to the Asset/Component/Item/Case Label Printer setup under your user profile


    GTIN Re-Labels: 1.5'' labels that can be generated with a GTIN barcode that differs from your GTIN currently associated with the product code.
    (Commonly used for customers who would like to scan in their inbound product using their own GTIN number)

    Note: GTIN Re-labels print to the Asset/Component/Item/Case Label Printer setup under your user profile.



    Product Labels: Labels placed on each item in inventory.  These labels include 1 barcode for the item number in addition to a UPC code.
    (Commonly used for items for internal inventory purposes, items that aren't actually sold/would require a special made product label)

    Note:     Product labels print to the Asset/Component/Item/Case Label Printer setup under your user profile




    Pallet Labels: Labels placed on each pallet in inventory.

    Supported PDF Pallet Label Formats:
    • 1-Up Landscape 8.5 x 11
    • 1-Up Portrait 8.5 x 11
    • 2-Up Portrait 8.5 x 11

    Note:     Pallet labels print to the Pallet Label Printer setup under your user profile.  The number of pallet label copies can specified within company setup.

    Inventory Pallet Labels:     Labels placed on pallets during receipts, and anytime throughout the pallet's stay within the warehouse to identify it.  These labels include barcodes for the item #(if not mixed), pallet id, lot # and manufacturing set #.

    Other Information Included:- Item or Mixed
    - # of Units
    - Lot
    - Lot Pack Date
    - Expiration Date
    - Sell by Date
    - Weight
    - Allergen
    - Manual ID
    - Bin


    Receipt Pallet Label: Labels printed during the receipt creation process, ahead of actually performing the receipt and placing the pallets into inventory.  These labels will contain a barcode with the PO# the pallet belongs to, and can be scanned to initiate performing the receipt.







    Warehouse Pallet Label:



    Manufacturing Pallet Label:     Any pallet generated as a result of a manufacturing process (Manufacture Produced etc.) will contain a barcode with the Set# associated with that pallet.  Set #s are assigned to every pallet going in and out of a particular day's manufacturing or "set" of processes.




    Mixed Pallet Labels:Labels placed on mixed pallets that contain multiple items and/or lots. These labels include barcodes for each item # or GS1-128 code (if associated), and lot number, and can be used during the verification process.




    Post Pick/Verification Order Pallet Labels: Labels placed on pallets after picking or verification has taken place for outbound pick orders.  These labels include barcodes for the item, lot, pallet id and order #, and also indicate the total case count on the order as of the moment the label was printed.





    Outbound Order Pallet Unit Labels:     Labels placed on outbound shipment pallets.  Includes 1 barcode per item, which includes the case quantity across all lots.  As well as a barcode for the company/pallet id.
    (Commonly requested by receiving parties of product who want to efficiently scan their inbounds received into their inventory management system)

    Note:Outbound Order Pallet Unit Labels will be printed automatically along with regular order pallet labels only after verification has taken place, as long as a GS128 SSCC (Serial Shipping Container Code) is setup and each item has a GTIN code associated with it.





    Pull Queue Pallet Labels:     New labels placed on pallets as they are created/moved around the warehouse using pull queues.  These labels include barcodes for the item and pallet id, and display the "queue name" assigned when creating the pull queue, as opposed to the bin or manual id/lot information at the bottom of the label.





    Custom Labels: Create your own custom labels to fill in with any miscellaneous information.

    Options Include:Simple Case Label 4x2     - These can be placed on pallets in addition to, or in lieu of the standard system case labels.
    4-Piece Label (8.5x11) - These can be placed on pallets in addition to, or in lieu of the standard system pallet labels.
    3-Line Label (2x2)

    Note:    Custom labels print to the printer selected during creation of the label.  Case labels and 3-line labels only print to thermal printers.  4-piece labels can print to either laser or thermal printers.

    The appropriate printer must be selected and loaded with the correct label size that corresponds to the selected label type.

    Simple Case Label 4x2:



    4-Piece Label:


    3-Line Label:




    Asset Labels: Labels placed on assets/equipment.  These labels include 1 barcode for the asset's id and can be scanned during the performance of maintenance events.

    Note:     Asset labels print to the Asset/Component/Item/Case Label Printer setup under your user profile



    Component Labels: Labels placed of an asset's component(s).  These labels include 1 barcode for the component's id and can be scanned during the performance of maintenance events.

    Note:     Component labels print to the Asset/Component/Item/Case Label Printer setup under your user profile

Printing Labels

  • Printing Labels
    Label Printers:

    Default label printers can be assigned through your user profile.






    Pallet Label Printer:    A designated printer to print all pallet labels (system and custom pallet labels, outbound order pallet unit labels).  Pallet labels can either be sent to laser printers or thermal label printers.

    Note:
    System and custom-created labels within Inspired support both laser and thermal printing.


    Supported PDF/Laser Pallet Label Formats:• 1-Up Landscape 8.5 x 11''
    • 1-Up Portrait 8.5 x 11''
    • 2-Up Portrait 8.5 x 11''

    Supported Thermal Pallet Label Formats:• 1-Up Portrait 4 x 6''



    Asset/Component/Item/Case Label Printer:
    A designated thermal printer that will print any 4x2'' label (product labels, case labels, asset/component labels)



    Printing Pallet Labels:

    Printing Individual Pallet Labels During Receiving:
    1. Go to the Warehouse Menu and click on the Create a Receipt Sub-Menu

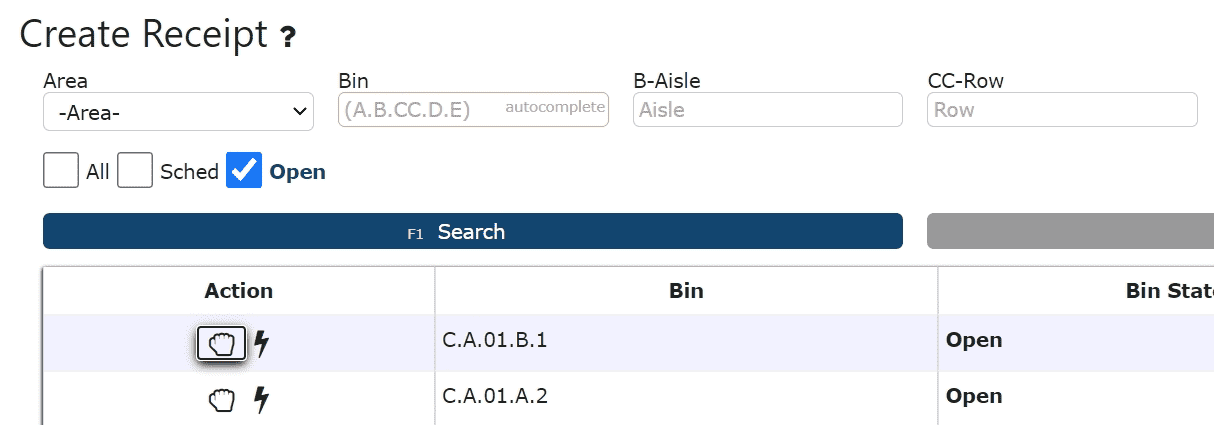

    2. Choose a bin and fill in the receipt's information

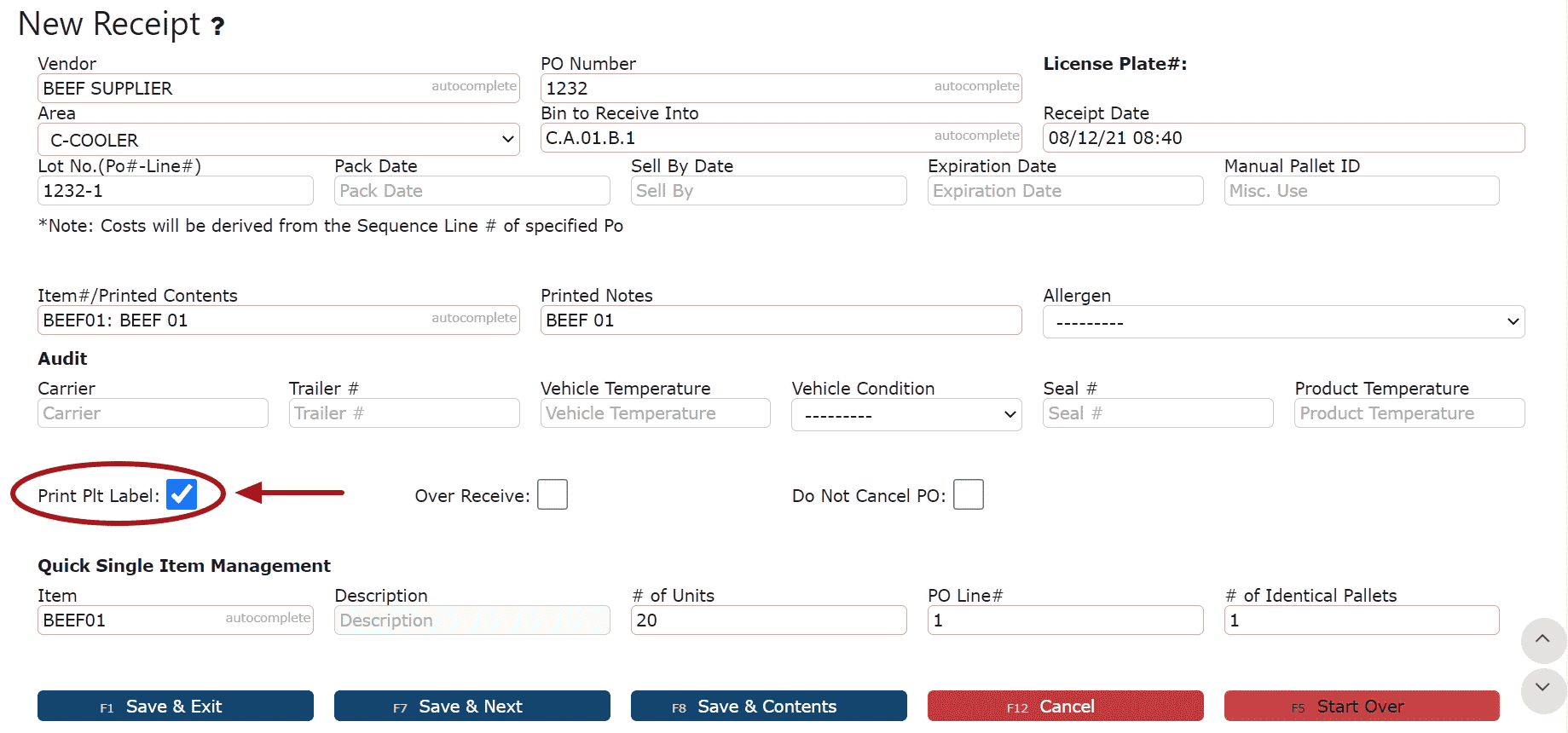

    3. Check the Print Plt Label Checkbox and save the receipt



    4. Once saved, the receipt's pallet label will print

    Note: Mixed pallet labels will automatically print along with the standard pallet labels up until verification has taken place


    Printing Multiple Pallet Labels During Receiving:

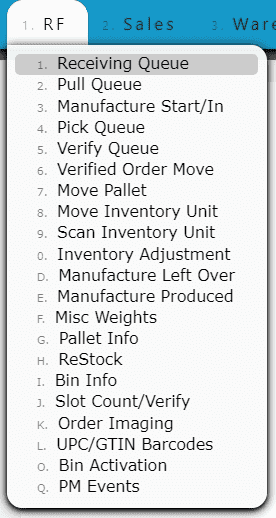

    1. Go to the RF Menu and click on the Receiving Queue Sub-Menu



    2. Click on the Edit Receipt Set Icon



    3. Click on the Edit Receipt Icon next to any of the receipts within the queue

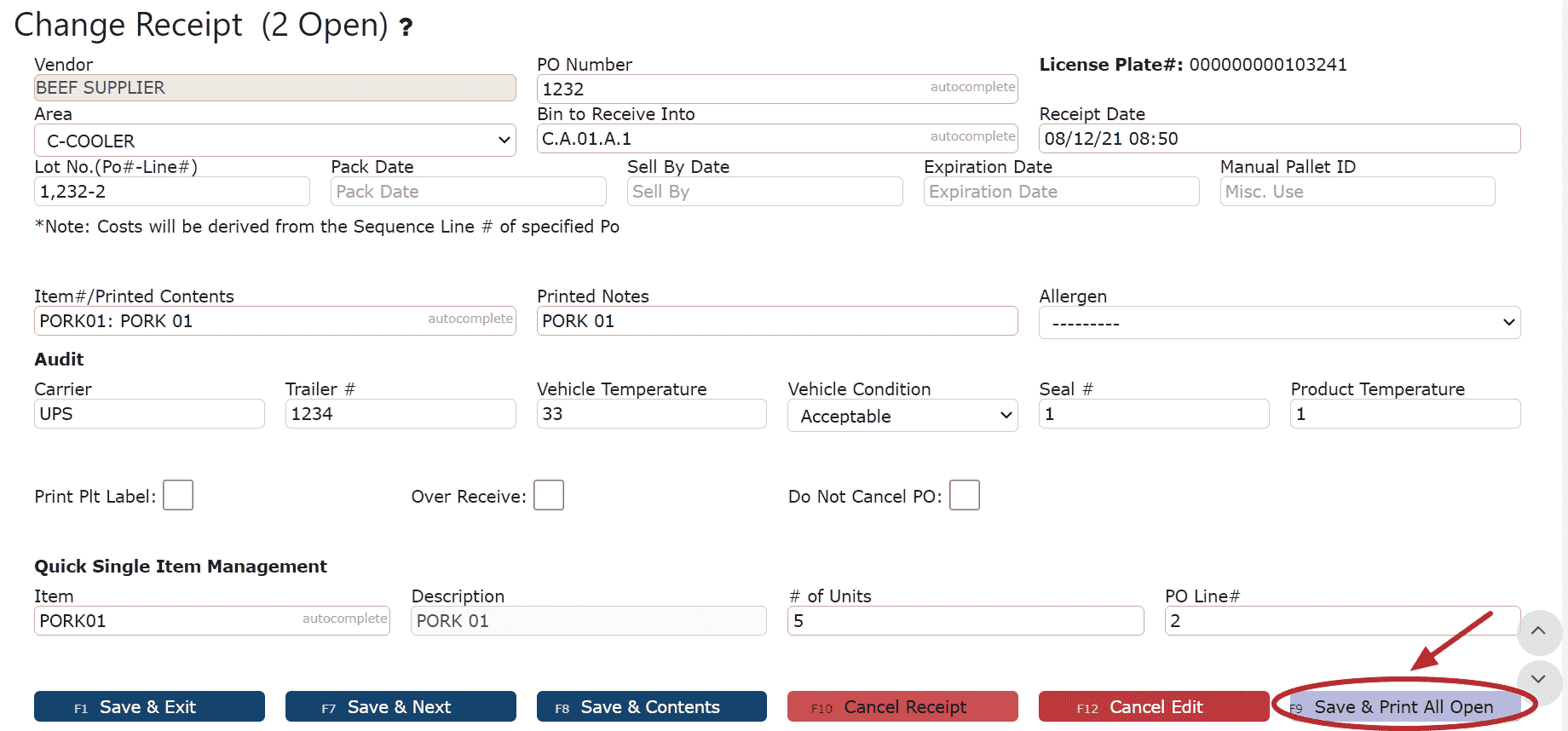

    4. Click on the Save & Print All Open Button to print all pallet labels for that receiving queue


    Note: Mixed pallet labels will automatically print along with the standard pallet labels up until verification has taken place


    While In Inventory:
    1. Go to the Warehouse Menu and click on the Global Pallets Sub-Menu



    2. Click on the Print Pallet Label



    Note: Mixed pallet labels will automatically print along with the standard pallet labels up until verification has taken place


    Post Verification Order Pallet Labels:

    Note: Outbound Order Pallet Unit Labels will be printed automatically along with regular order pallet labels in lieu of mixed pallet labels, only after verification has taken place, and as long as a GS128 SSCC (Serial Shipping Container Code) is setup and each item has a GTIN code associated with it.

    After Picking:
    1. Go to the Sales Menu and click on the Orders Sub-Menu



    2. Click on the Order Pallet Labels Icon to print pallet labels for all pallets on the order




    During Verification:
    1. During verfication, check the Order Labels Checkbox to automatically print an order label per verified pallet





    Printing Case Labels:

    Note: A flag and user feature must be enabled by I.T in order to use this feature.  In addition, case label format must either be assigned per item class and/or per item.  Items must either be assigned an item class that has been assigned a case label format, or assigned an override case label format directly within the item master in order to generate and print case labels.


    During Receiving:
    1. Go to the Warehouse Menu and click the Create Receipt Sub-Menu



    2.  Click on either the Floor button to put a pallet away to the floor, or click on the Create Receipt icon next to the corresponding bin

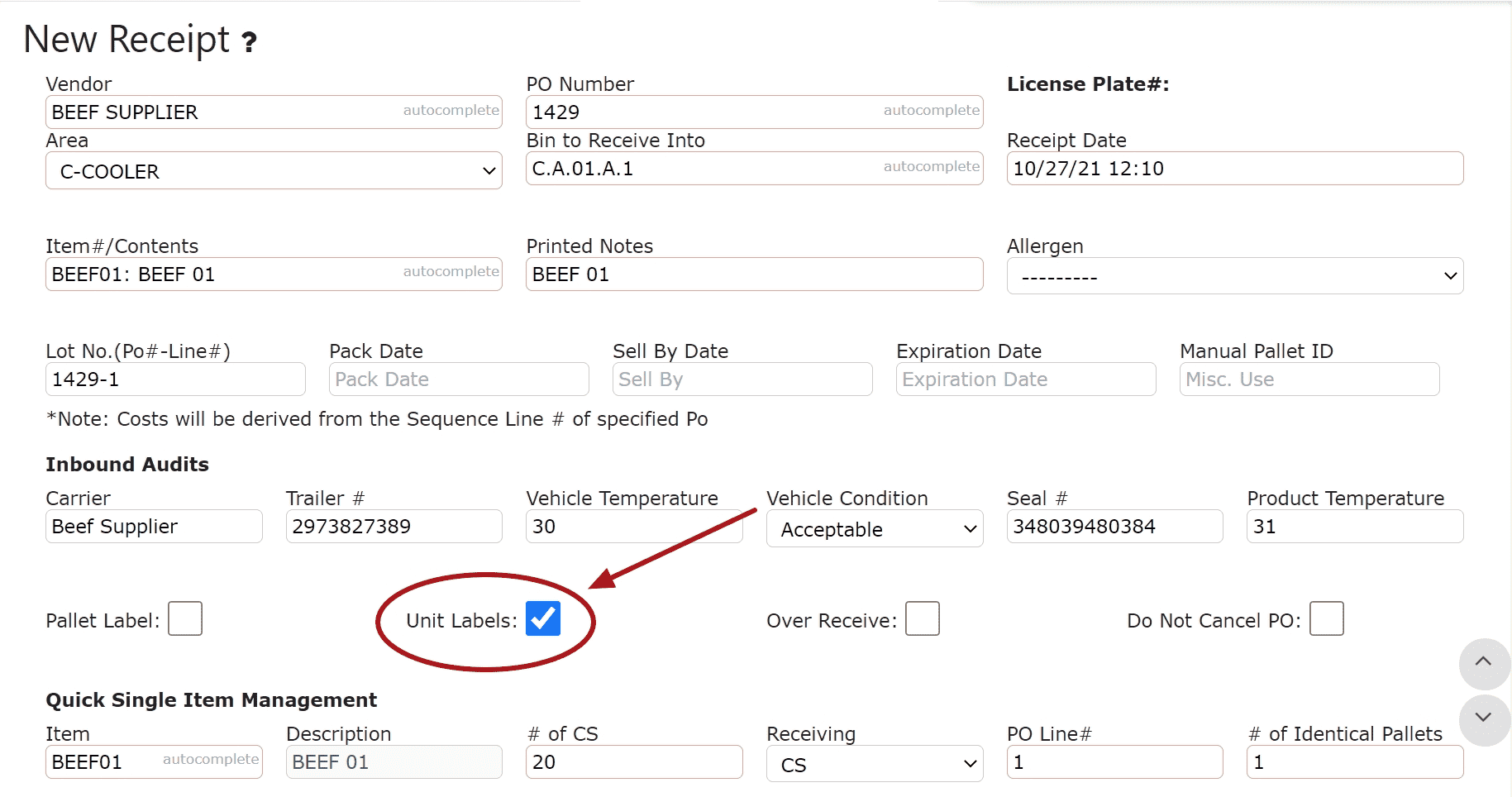

    3. Fill in the receipt's information, check the Unit Labels Checkbox, then save the receipt



    4. Once saved, all of the case labels for the receipt will print


    RF Unit Label Print:

    Print unit labels before or after inventory is added to the system

    1. Go to the RF Menu and click on the Unit Label Print Sub-Menu



    2. Enter the item, then click Next Step



    3. Enter the lot



    4. Enter the Pack Date, Sell By Date, and Expiration







    5. Enter the number of unit labels to print and confirm



    6. Once confirmed, the unit labels will print




    Individual Case Labels (Without Catch Weights):

    Note: Cases containing set weight items will print the standard weight by default

    1. Go to the Warehouse Menu and click on the Inventory Units Sub-Menu



    2. Click on the Print Case Label Icon




    Individual Case Labels With Catch Weights:
    1. Go to the Warehouse Menu and click on the Inventory Units Sub-Menu



    2. Click on the Edit Weights Icon



    3. Click on the All Entries Button



    3. Click on the Print Case Label Button




    Note: GTIN associations must be defined in order to print case labels with weights


    All Case Labels:
    1. Go to the Warehouse Menu and click on the Inventory Units Sub-Menu



    2. Click on the Edit Inventory Unit Icon



    3. Click on the Print All Labels Button




    Note: One case label per unit indicated will be printed.  Weights if collected, will be reflective on case labels when printing in bulk.



    Printing Product Labels:

    1. Go to the Warehouse Menu and click on the Item Master Sub-Menu



    2. Click on the Print Product Label Icon




    Printing Asset Labels:

    1. Go to the Assets Menu and click on the Assets Sub-Menu



    2. Click on the Print Asset Label Icon



    Printing Component Labels:

    1. Go to the Assets Menu and click on the Assets Sub-Menu



    2. Click on the Manage Components Icon



    3. Click on the Print Component Label Icon



    Printing Custom Labels:

    1. Go to the Warehouse Menu and click on the Custom Labels Sub-Menu



    2. Fill in all of the label's information, then click the Print Button



    Printing GTIN Re-Labels:

    1. Go to the RF Menu and click on the GTIN Re-label Sub-Menu



    2. Scan or enter the item number



    3. Click on the To GTIN button and select one of the re-label gtin options

    Note: New GTIN "Re-Label" barcode associations must be previously set up in order to complete this step (to set up, use the Scanning icon off of the item master to add or change an item's GTIN Re-Label associations).







    4. Scan "From" barcode (this is the original case label already on the box that will be used to create the new barcode under the new GTIN).  If successful, a label will print out automatically to your asset/Component/Item/Case Label Printer.

    Note: Ensure that your "From Format" selected matches the format of the barcode you are scanning.  If it doesn't, use the From Format Button to select the correct format.
